Hanna AutoCAD Batch Plot

Hanna AutoCAD Batch plot can easily convert DWG file to PDF/TIFF/PLT/DWF or direct print to printer.

With this tool, you can recognize multi-border of model space and multi-sheet of paper space. Especially for the model space, automatically calculate the plot scale and the paper size for each drawing border. You can set filter rules and set your own plot styles.

We provide two versions: AutoCAD addin version and publish server version. the server version can plot drawing automatically by quene.also you can edit the queue, adjust the priority of the queue. also provide monitor, for control the server runing status, re-start AutoCAD and the server.

Support AutoCAD Version

Support AutoCAD 2008/2009/2010/2011/2012/2013/2014/2015/2016/2017/2018, also supprt AutoCAD vertical product, such as AutoCAD Mechnaical, AutoCAD Electrical, AutoCAD Architecture, AutoCAD MAP and so on.

You can download free trail version from Autodesk apps store for AutoCAD 2012/2013/2014/2015/2016/2017/2018.

Please sent mail to support@uhanna.com to get the trial version for AutoCAD 2008/2009/2010/2011 .

User Challenge

Recognize the multi-drawing border in the model space
Recognize the mult-sheet of the paper space
Fillter needn't plot entity or area
Automatically calculate the plot scale
Automatically calculatea paper size
Eaily batch plot to PDF/TIFF/PLT or to printer

User interface

User Menu

Menu of Hanna Batch Plot

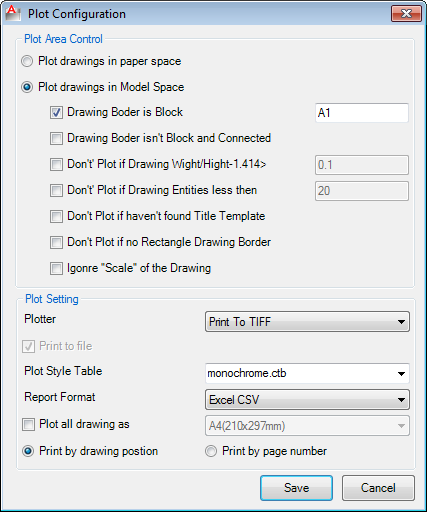

Split drawing Configuration for model space(picture 1)

HanPlot

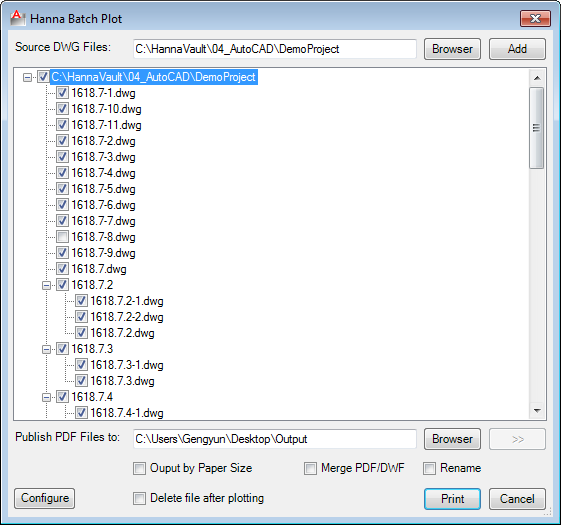

Batch Plot Dialog:

Hanna Batch Plot Dialog

Sample drawings

Sample Drawing

Version Comparison

Function	Single user Version	Enterprize Version	Ultimate Version	Customize Version
Recognize Multi-drawing border in model space	⊙	⊙	⊙	⊙
Define title template	⊙	⊙	⊙	⊙
Automatically fillter drawing entity or area	⊙	⊙	⊙	⊙
Automatically Calculate plot scale	⊙	⊙	⊙	⊙
Automatically calculate paper size	⊙	⊙	⊙	⊙
Plot All drawing to one paper size	⊙	⊙	⊙	⊙
Plot drawing to small paper size	⊙	⊙	⊙	⊙
Split drawing configuration	⊙	⊙	⊙	⊙
Recognize multi-drawing in paper space	⊙	⊙	⊙	⊙
Batch plot to PDF/DWF/PLT	⊙	⊙	⊙	⊙
Merge PDF/DWF	⊙	⊙	⊙	⊙
Output file by paper size	⊙	⊙	⊙	⊙
Print order by position	⊙	⊙	⊙	⊙
Split multi-border to single border in one file	⊙	⊙	⊙	⊙
Support AutoCAD 2008 - 2018	⊙	⊙	⊙	⊙
Direct plot to ploter		⊙	⊙	⊙
Plot to different ploter		⊙	⊙	⊙
Customize user paper size		⊙	⊙	⊙
Active by serial number		⊙	⊙	⊙
Batch Plot to TIFF(need Acrobat licnese)			⊙	⊙
Plot order by page number			⊙	⊙
Extract title information			⊙	⊙
Rename output file by partnumber			⊙	⊙
Watermark				⊙
Bar code or QR code				⊙
Integrate with other system				⊙
